Waveshare ESP32-S3-ETH-8DI-8RO-C(Common Network Port), Industrial 8-Ch ESP32-S3 WiFi Relay Module, Isolated Can Interface, Xtensa 32-bit LX7 2-Core Processor, Up To 240MHz, Multi Isolation Protection

Corriente nominal: 10 Amperios
Marca: Waveshare
Modo de funcionamiento: Automático
Voltaje de la bobina: 30 Voltios (CC)
Valoración actual de contacto: 10 Amperios

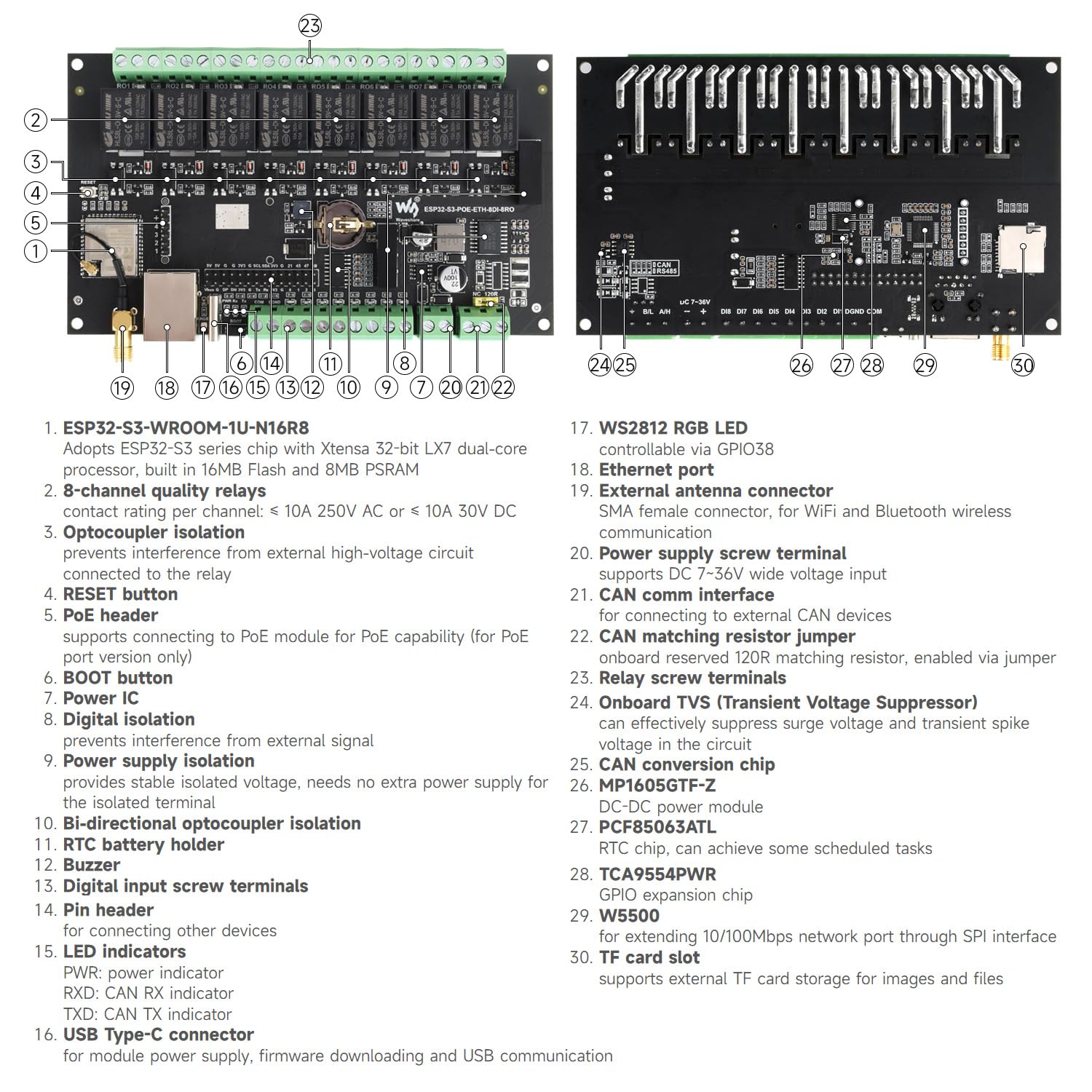

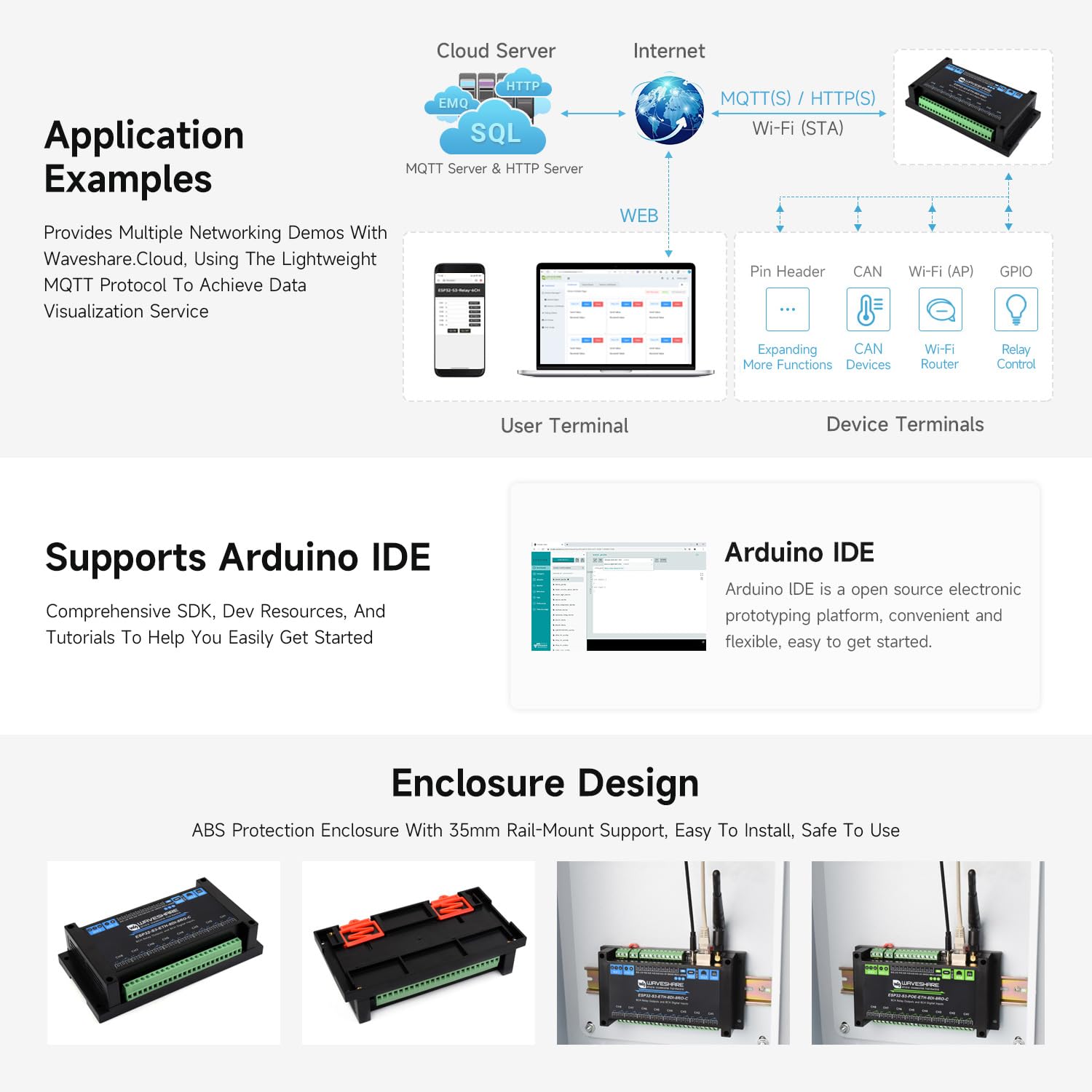

- Common network port version. Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 2.4GHz Wi-Fi and BT LE dual-mode wireless communication, with superior RF performance

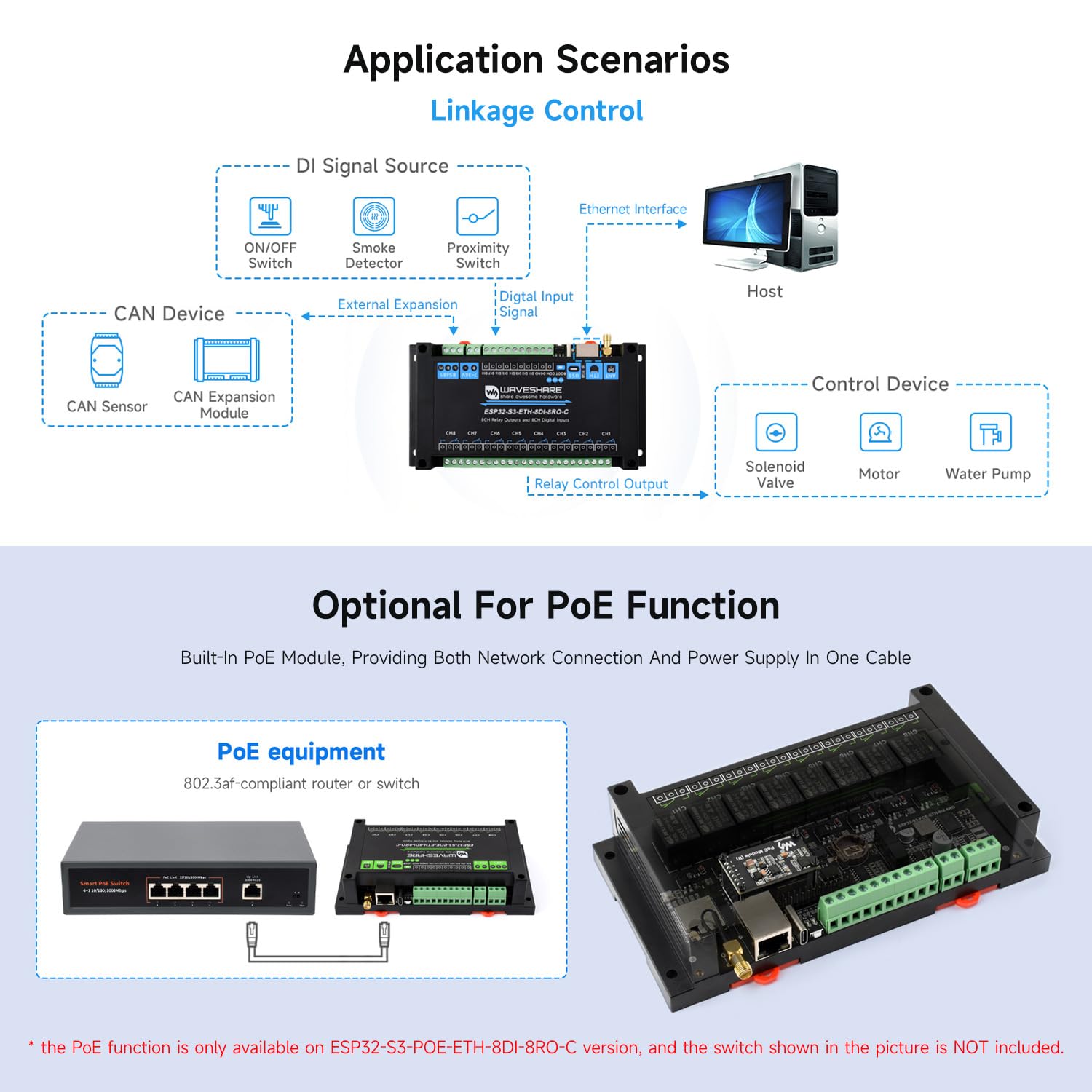

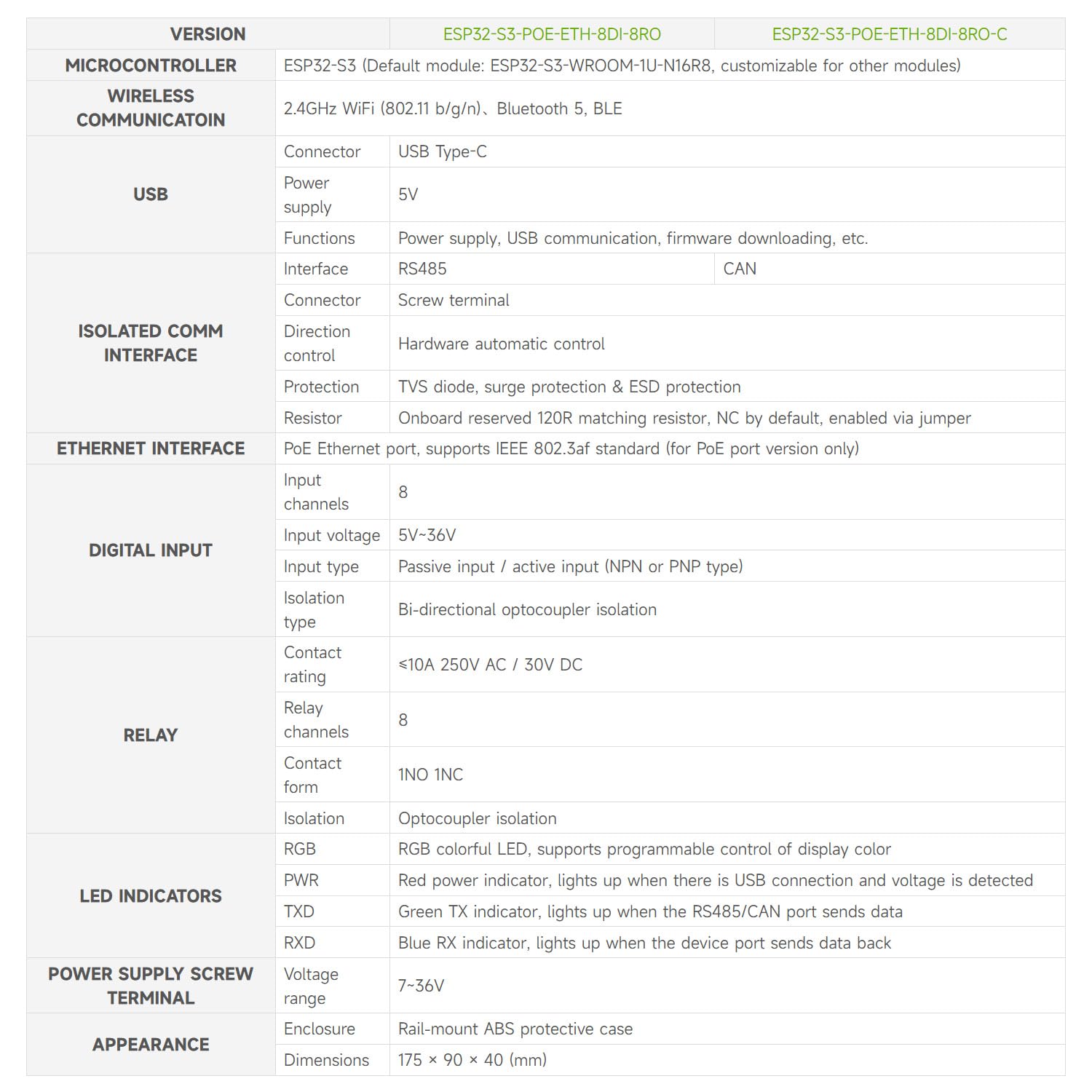

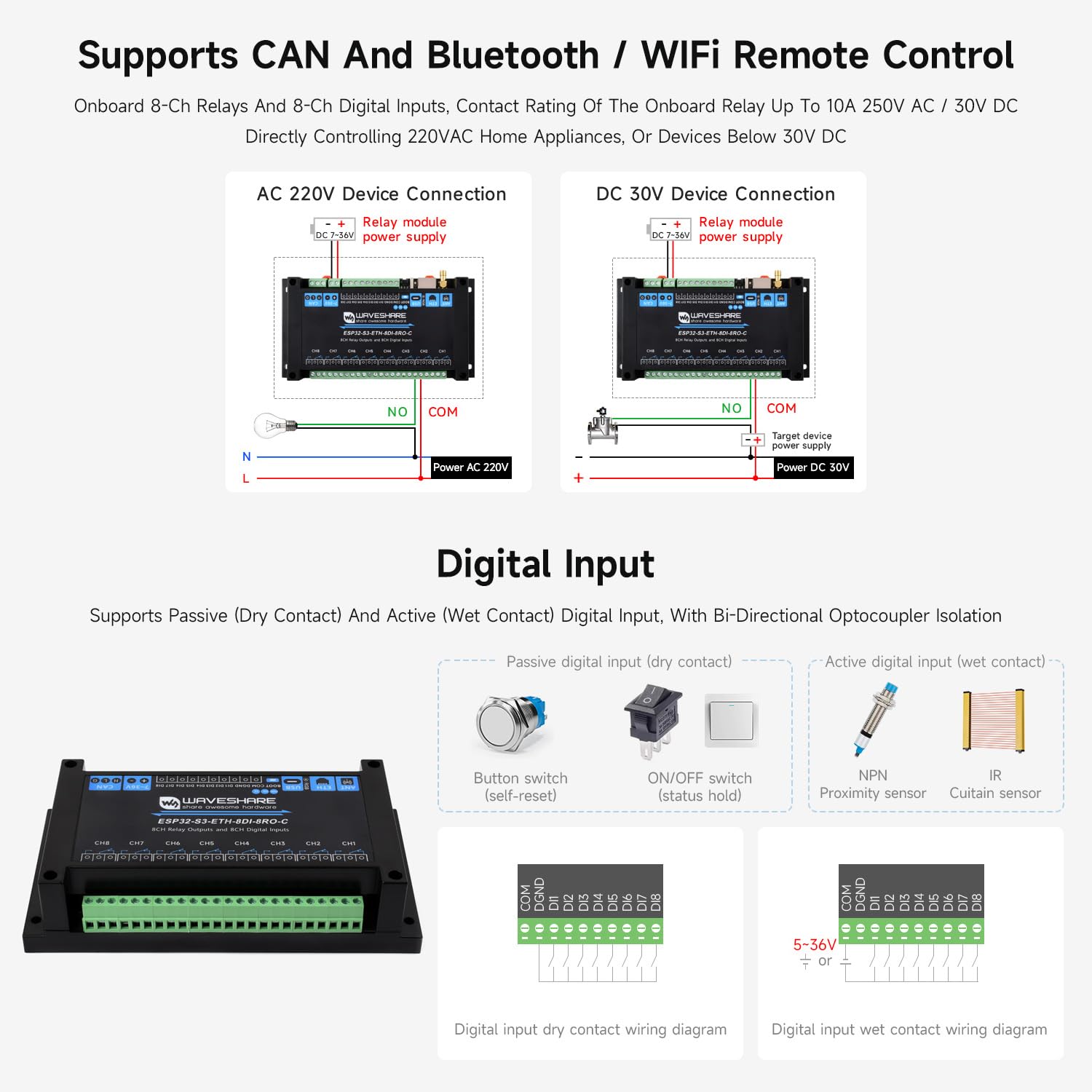

- High quality relay, contact rating: ≤10A 250V AC / 30V DC. Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control. Onboard isolated CAN interface, for connecting to various CAN devices. Onboard pin header, allowing access to other devices
- Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications. Onboard RTC chip, supports scheduled tasks. Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
- Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay. Onboard digital isolation to prevent interference from external signal. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal

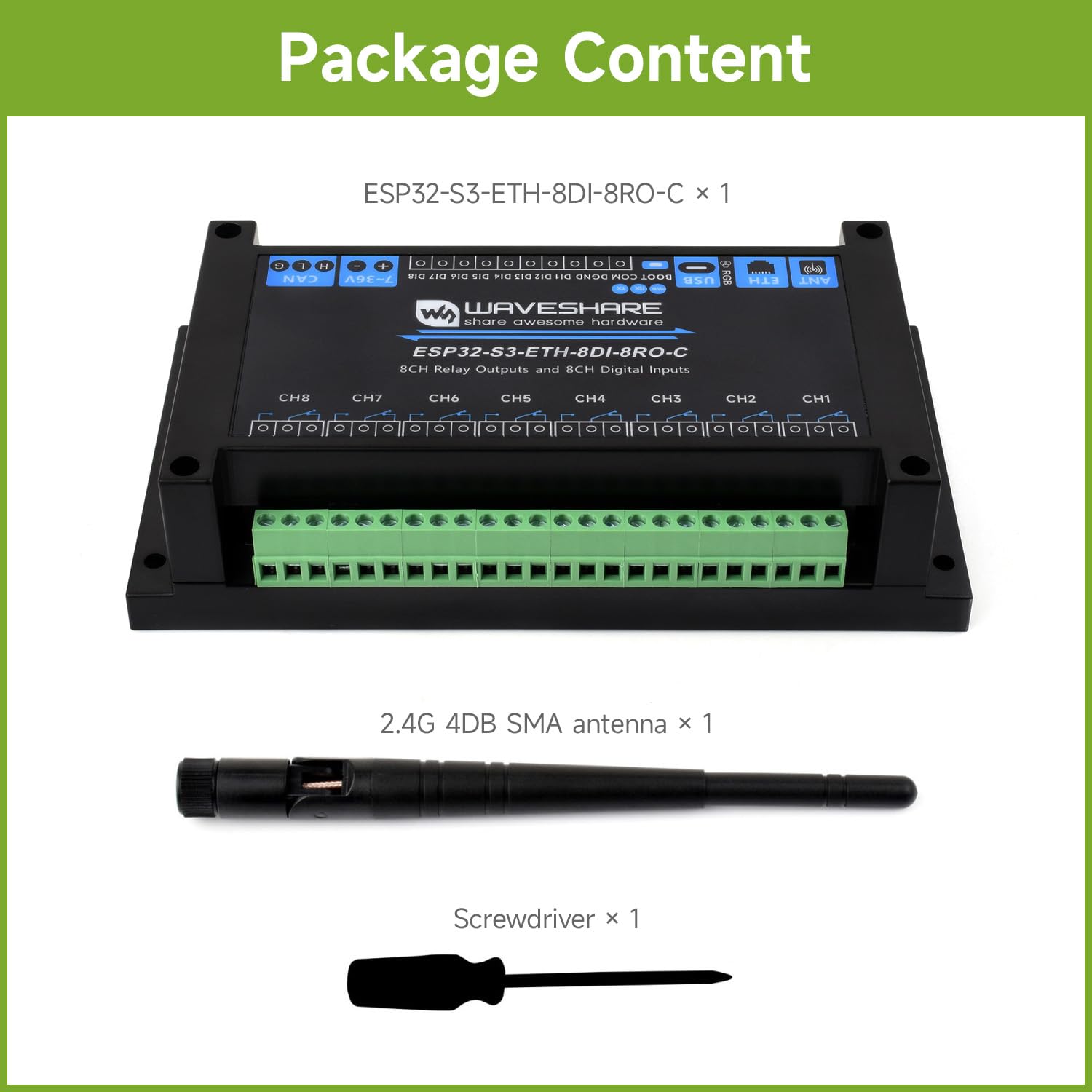

- Onboard TF card slot for external TF card storage of images and files. Built-in buzzer, RGB LED, power supply and CAN TX/RX indicators for monitoring the operating status of the devices. Rail-mounted ABS case, easy to install, safe to use
